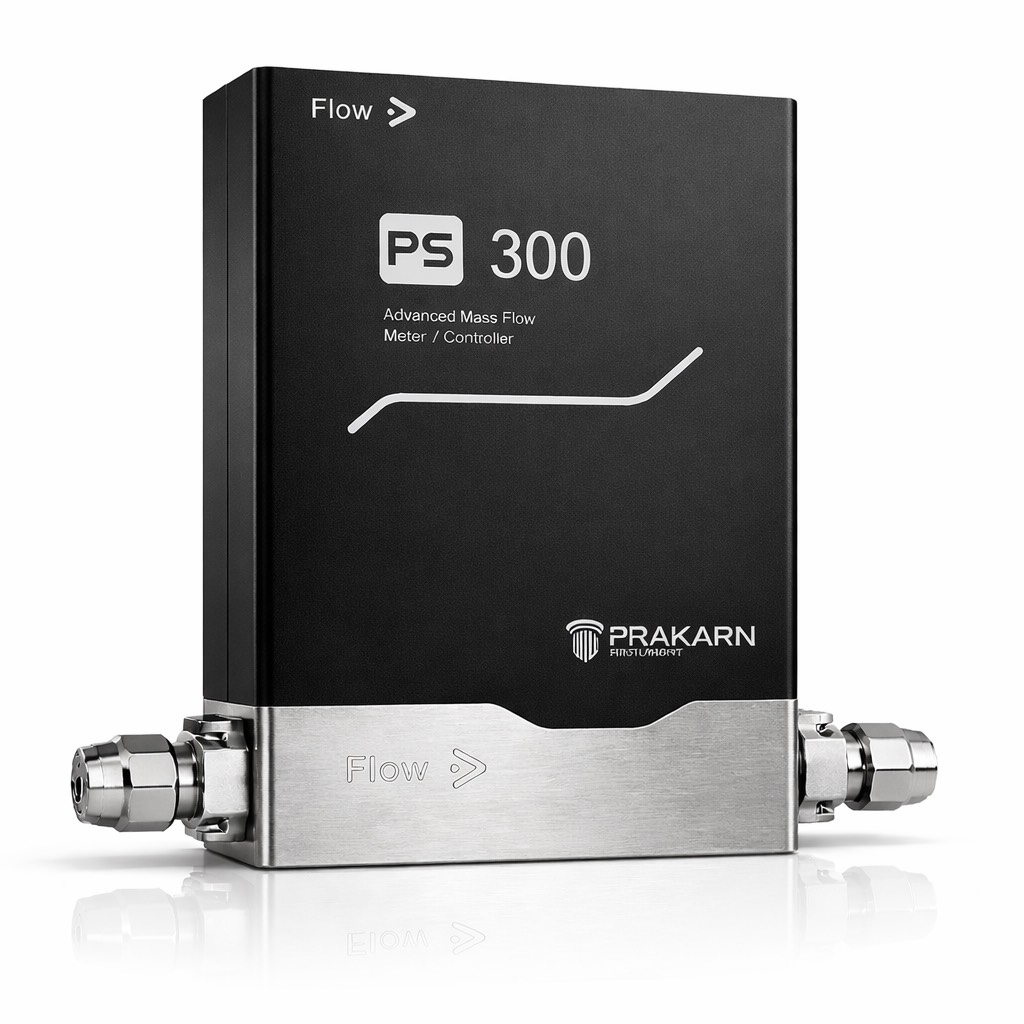

MASS FLOW CONTROLLER PS300 SERIES

ภาพรวมของ MASS FLOW CONTROLLER PS300 SERIES

Introducing the MASS FLOW CONTROLLER PS300 SERIES, the ultimate solution for highly precise gas regulation and measurement. This advanced device is expertly engineered for complex industrial automation and laboratory environments where absolute accuracy is strictly mandatory. Measuring and adjusting gas flow with incredible precision dramatically improves your overall manufacturing quality. This robust instrument utilizes cutting-edge sensor technology to ensure your fluid control systems remain unconditionally stable. For exploring other fluid control models, you can also browse our full Flow equipment category.

คุณสมบัติเด่น

• Ensures extreme measurement accuracy levels reaching 0.3% F.S. for maximum precision.
• Features an impressive response time of less than 0.5 seconds to reduce system lag.
• Designed with premium 316L stainless steel for outstanding corrosion resistance.
• Provides comprehensive digital connectivity via an RS-485 Modbus RTU interface.
• Equipped with an electromagnetic proportional valve guaranteeing a near-zero leakage rate.

สเปกทางเทคนิคโดยสรุป

Performance Parameter

• Accuracy: 0.3% F.S. (≤30%F.S.), 1.0% S.P. (>30%F.S.)
• Repetition accuracy: ±0.2% F.S.
• Response Time: ≤0.5s
• Operating Temperature: 0-50˚C
• Operating pressure: >2slm, 0.5-4bar / ≤2slm, 0.5-6bar (Specific range related)
• Leakage rate: ≤1×10-9 Pa m³/s He (fluorine rubber seal), ≤1×10-11 Pa m³/s He (all metal seal)
• Max. Withstand pressure: 9.8bar

Electrical Interface Details

• Power voltage: DC24v
• Power consumption: ≤2.7W
• Digital control: RS-485 (Modbus RTU)
• Analog control: 0~5V, 4~20 mA
• Interface type: RJ45, D-SUB9

Mechanical Connections

• Valve Type: Normally closed
• Substrate Material: 316L stainless steel
• Sealing Material: FKM
• Process connections: Tube/VCR Fittings

ทำไมต้องเลือก MASS FLOW CONTROLLER PS300 SERIES

Achieving system stability requires highly reliable instruments. Designed to provide rapid response times, minimal pressure drop, and exceptional durability, this controller is ideal for severe operating environments. Utilizing an advanced proportional control valve, it mitigates leaks while continuously tracking real-time status. Whether you are operating a research laboratory or a large-scale automated plant, this robust device helps minimize errors and dramatically enhances your overall process consistency.

Industrial Applications

• Semiconductor Manufacturing and Processing
• Advanced Gas Control Network Systems
• Automated Chemical Dosing and Mixing
• High-Grade Laboratory Research Equipment

Downloads

Datasheet: Data Sheet_PS300 Series

User Manual: User Manual PS300 Series

Drawing: Drawing_PS300 Series

3D Model: 3D Model_PS300 Series
