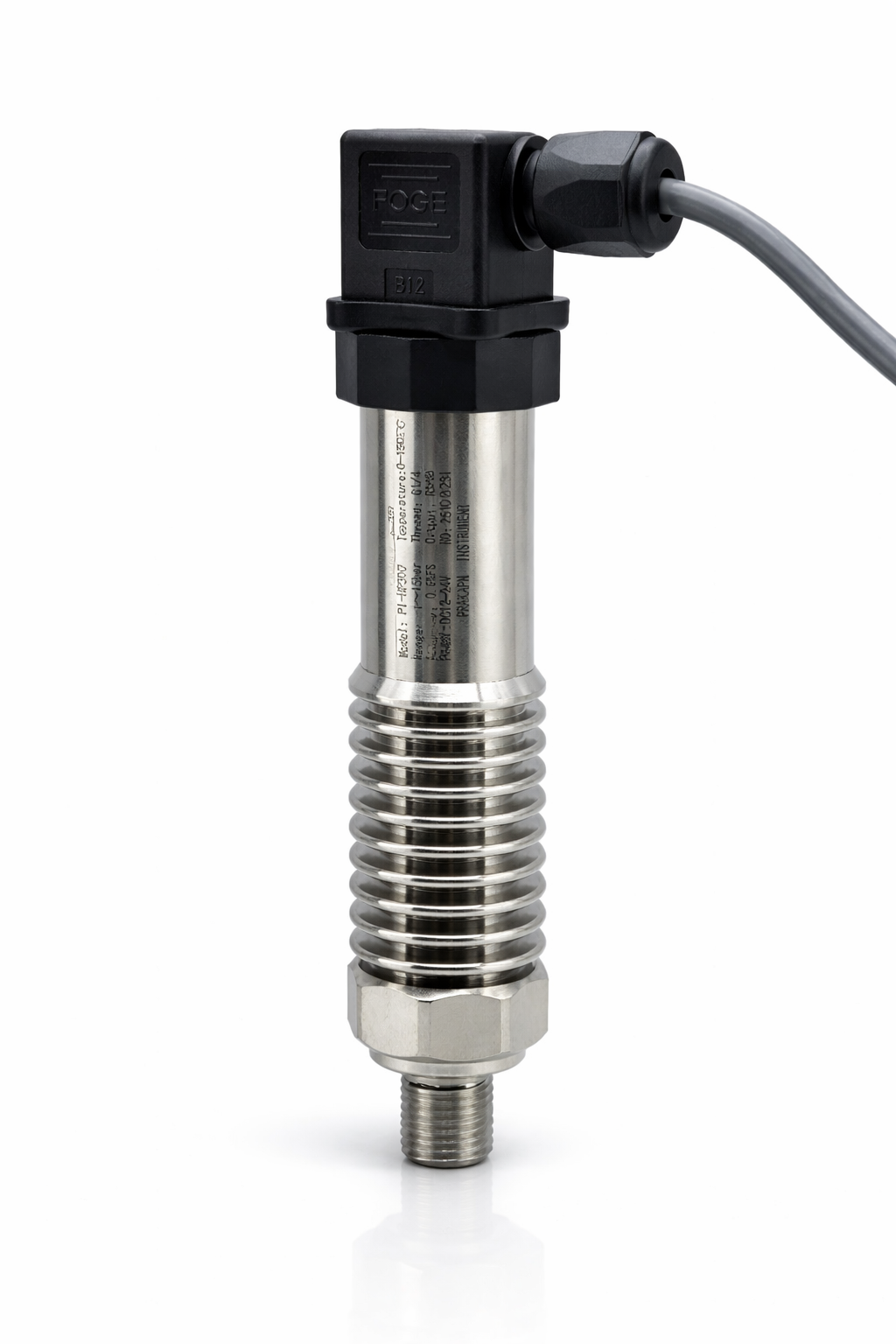

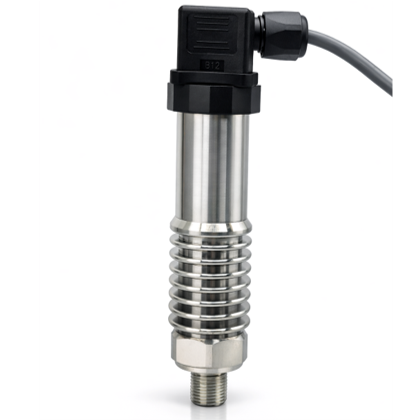

HP300 Pressure Transmitter

Overview of the HP300 Pressure Transmitter

Introducing the highly durable HP300 Pressure Transmitter, explicitly engineered to deliver relentless precision when measuring high-temperature industrial fluid environments. Continuous monitoring of volatile gases and piping infrastructures remains completely critical toward securing modern autonomous manufacturing facilities successfully. Deploying unverified monitoring equipment within aggressive thermal configurations drastically intensifies the immediate probability of severe infrastructural blowout crises. Utilizing this sophisticated measuring instrument actively ensures factory administrators retain instantaneous metric awareness, thereby dramatically shielding existing pipeline frameworks against unseen structural fatigue. Constructed using heavily fortified SS316L stainless steel alloys, this dependable unit continuously monitors hot oils and caustic liquids entirely devoid of rapid mechanical degradation. To understand the fundamental principles behind exactly how this technology ensures operational safety throughout complex pipeline networks, please review the Wikipedia concept on Pressure sensors. For exploring other related models, you can also browse our full Engineering equipment category efficiently online.

Key Features

• Provides expansive operational coverage accommodating extreme pressures ranging from -1 to 1000 bar.
• Ensures unwavering factory confidence by executing measurements with strict 0.2% to 0.5% F.S. accuracy.
• Features incredibly rapid digital metric processing yielding swift response times measuring ≤10ms.
• Exhibits excellent continuous systemic resilience boasting an aggressive 150% overload pressure capacity limit.
• Supplies profound environmental durability certified strictly under formidable IP65 industrial protection ratings.

Technical Specifications Overview

Performance Parameter

• Accuracy: 0.2% F.S. / 0.5% F.S.
• Measuring Range: -1 bar to 1000 bar (-100Kpa to 100Mpa)
• Response Time: ≤10ms
• Overload Capacity: 150% F.S.
• Long-term Stability: ±0.2% F.S./1year
• Medium Temperature: -10℃ to 85℃
• Operating Temperature: -10℃ to 65℃
• Temperature Drift: 0.05% F.S./℃

Electrical Interface Details

• Power Supply: 24VDC
• Output Signals: 4-20mA, 0-5V, 0-10V, RS485
• Display Options: No display, LED display, LCD display
• Protection Grade: IP65

Mechanical Connections

• Measuring Medium: Water, gas, oil, liquid (Compatible with SS316L)
• Thread Size Options: G1/2″, G1/4″, NPT1/2″, NPT1/4″

Why Choose The HP300 Pressure Transmitter?

Protecting intensely pressurized machinery fundamentally dictates locating equipment rigorously tailored to sustain aggressive thermal fluctuations consistently. Operating central boiler networks without extracting pinpoint metrics unavoidably subjects fundamental safety valves toward rapid deterioration constraints blindly. Integrating this premium monitoring asset tangibly reinforces primary distribution chains globally, drastically sinking unwanted facility restoration expenditure cycles rapidly. Because this unit possesses reliable long-term measurement consistency evaluated precisely at ±0.2% F.S. annually, administrators drastically avoid bothersome recurring equipment recalibration scenarios entirely. Additionally, its inherent compatibility spanning standard 4-20mA methodologies directly alongside modern RS485 communication ports effortlessly enables field technicians toward configuring this hardware immediately into traditional PLC systems without initiating profound electronic overhauls simultaneously.

Industrial Applications

• High-Temperature Petrochemical Processing Facilities
• Industrial Boiler and Heavy Hydraulic Control Mechanisms
• Centralized Heavy Duty Gas Pipeline Intersections
• Robust Thermodynamic HVAC Plant Infrastructures

Downloads

Datasheet: HP300 Pressure Transmitter Datasheet
