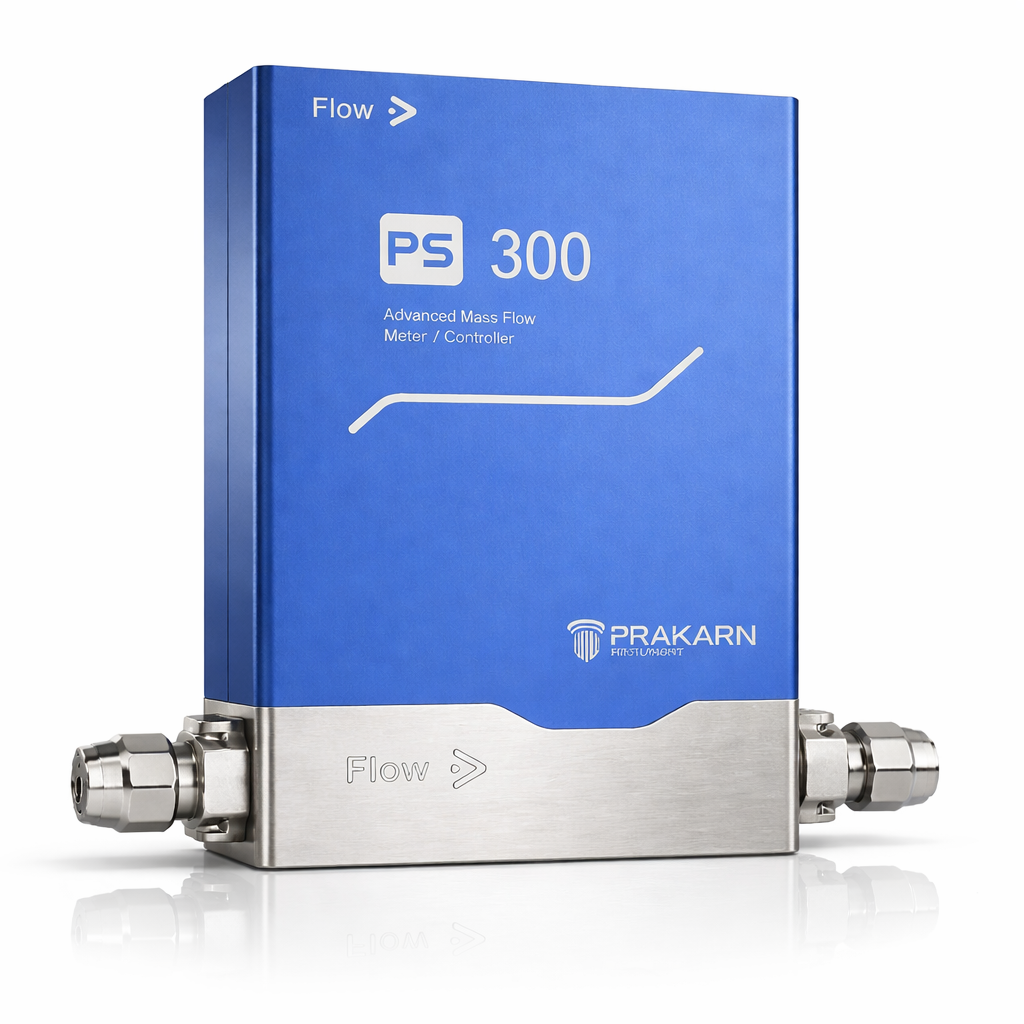

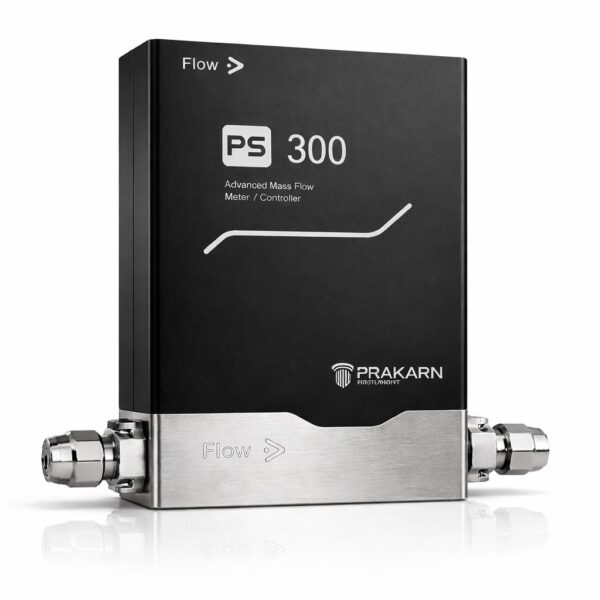

PS300 MASS FLOW

Detail

Performance

• Accuracy : 0.3% F.S. (≤30%F.S.) , 1.0% S.P. (>30%F.S.)
• Repetition accuracy:  ±0.2% F.S.
• Response Time:  ≤0.5s
• Operating Temperature:  0-50˚C
• Operating pressure:  >2slm, 0.5-4bar, ≤2slm, 0.5-6bar (Specific range related)
• Leakage rate: ≤1×10-9 Pa m³/s He (fluorine rubber seal) , ≤1×10-11 Pa m³/s He (all metal seal)
• Max. Withstand pressure:  9.8bar

Electrical Parameters

• Power voltage: DC24v
• Power consumption: ≤2.7W
• Digital control: RS-485 (Modbus RTU)
• Analog control: 0~5V, 4~20 mA
• Interface type: RJ45, D-SUB9

Mechanical Parameters

• Valve Type: Normally closed
• Substrate Material: 316L stainless steel
• Sealing Material: FKM
• Process connections: Tube/VCR Fittings
