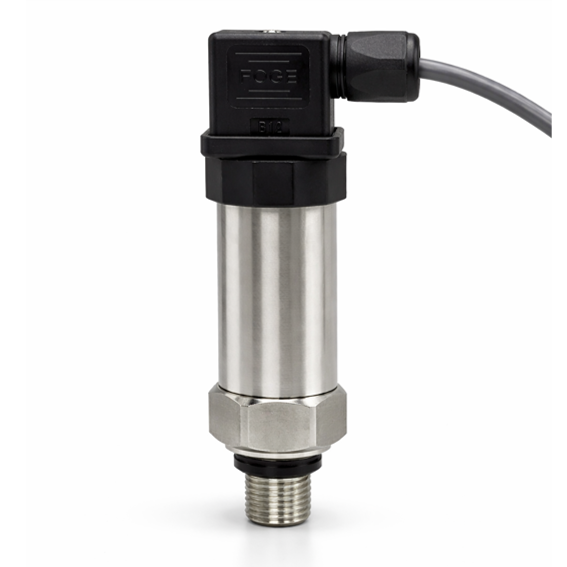

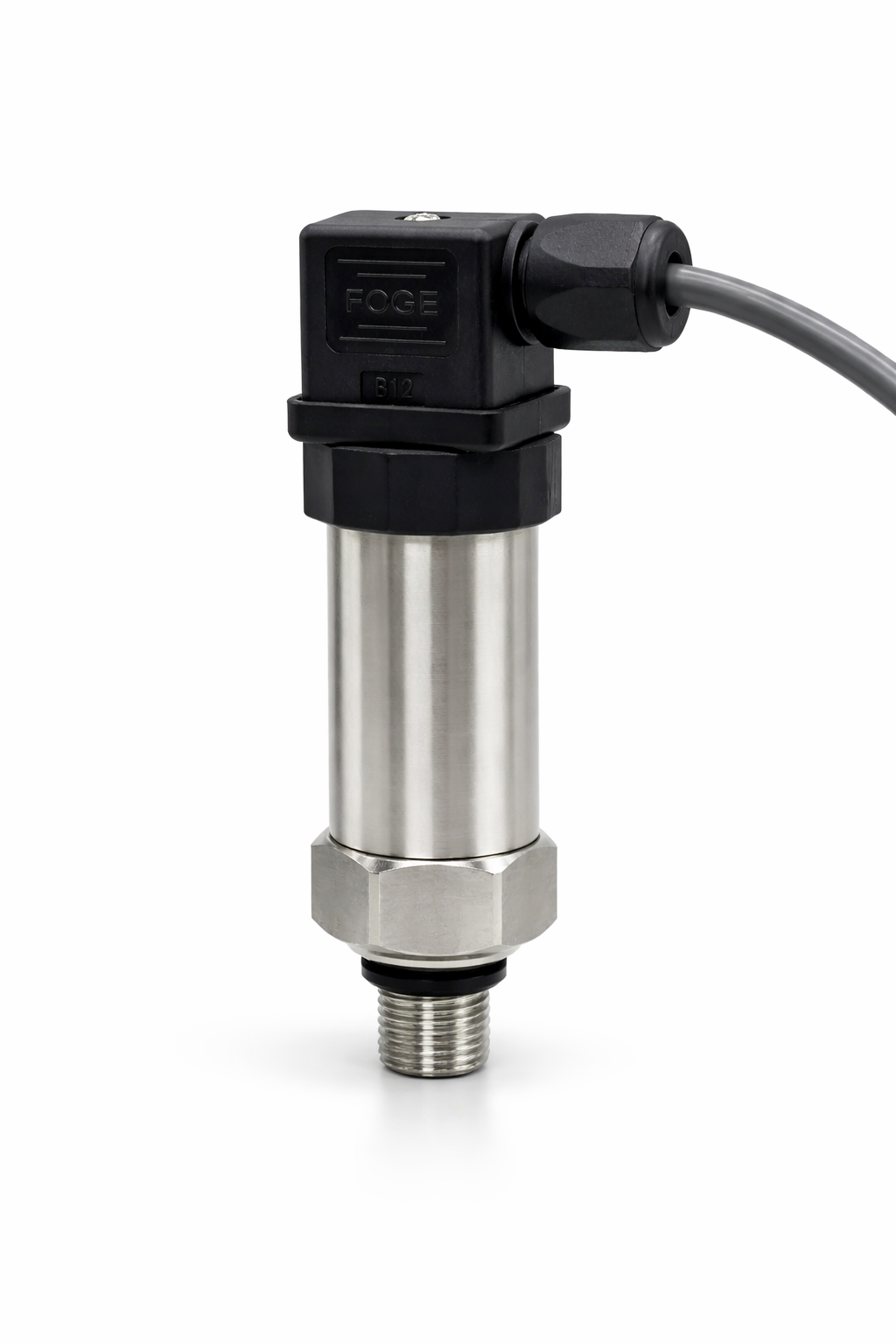

Pressure Transmitter

4,500 ฿4,500 ฿
SKU N/A Categories , แบรนด์:

รายละเอียดสินค้า

  • Measuring medium: water, gas, oil, liquid (compatible with SS316L)
  • Pressure type: Gauge pressure (default), Absolute pressure, Negative
  • pressure, Vacuum pressure, Sealing pressure
  • Measuring range: -1bar-0-1000bar(-100Kpa-0-100Mpa)
  • Output: 4-20mA, 0-5V, 0-10V, RS485
  • Power supply: 24VDC
  • Thread size:  G1/2″, G1/4″, NPT1/2″, NPT1/4″
  • Accuracy: 0.2%F.S, 0.5%F.S.
  • Overload capacity: 150% F.S.
  • Response time: ≤10ms
  • Protection grade: IP65
  • Long-term stability: ±0.2%F.S./1year
  • Medium temperature: -10℃-85℃
  • Operating temperature: -10℃-65℃
  • Temperature drift: 0.05%F.S./℃(-10℃-65℃)

Data sheet

Pressure Transmitter
